Product Information

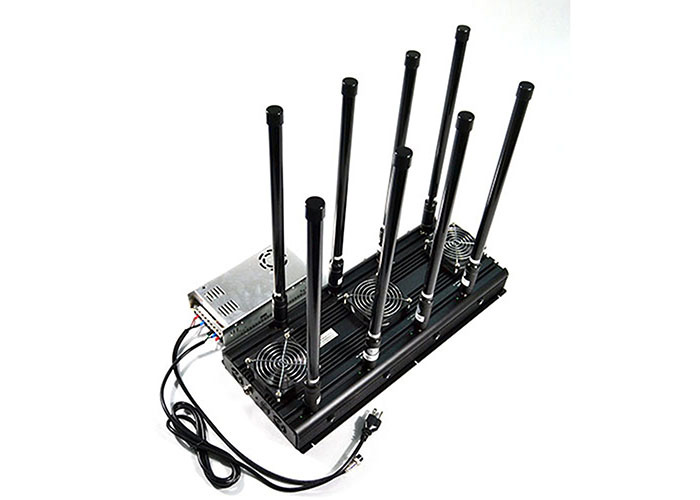

Name: 8 Bands High Power Cell Phone Signal Jamming device for 3G 4G
5G WIFI with 165 Watt Jammer up to 150m
Model: CKJ-1701D8-5G
Color: Black
Basic Specifications
Jam Signal Type:Mobile phone 3G/2G GSM CDMA DCS 4GLTE 5GNAS +WIFI2.4G Signals
Output Power:Total 165W,20-25W each band
Jam Radius:20-120 meters (GPS signal for 500m)
Power Supply:AC110-240V to DC27V
Cooling System:High efficiency aluminum alloy radiator+ 7X cooling fans
Working Time:Not-stop Working
Product Size:550x 238 x 60 mm(not Include Antenna)
Product Weight: appr.10kg ( for normal OMNI antennas)
Package Contents:Jammer Host x 1, Adapter x 1, antenna x8,
Product Description
The one is professional high power mobile phone jammer for 5G 4G
cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal
Jammer which are currently presented on the market. Also is Middle
RF power Drone Jammer model with 8 antennas 7 cooling fan which
bring us a strong jamming ability. 24/7 continuously working. And
it can defend 100% drones UAVs, like Phantom 4, Phantom 3
Professional, advanced, standard series, inspire series
Advantage
Output power total 165 w, You can choose high gain 5-7 dbi OMNI or
Panel directional antennas, shielding 20-120m,Still depends on the
strength signal in given area.
Each unit can jam up to 6 frequency bands simultaneously, each
frequency band is separate and with adjustable power from max to
off (0), LED indicator lights display power supply
100% safe VSWR over protection (isolator) for each modular
Good cooling system with Heat sink and 3 big on top fans + 4 x
small inside, low noise, not-stop to work
OEM Customized Service
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi
2.4G,5.8G,3.6GHz, GPSL1-L5 and more
Silkscreen OEM service can be offered.
Application
It can be applied at meeting rooms, conference rooms, museums,
galleries, theatres, concert halls, churches, temples, restaurants,
classrooms, training centers, factories, banks, trains, bus and
more Places that require silence, confidentiality and information
security For some locations of special purpose such as hospitals,
gas stations and more, please do field test first to make sure no
interference happened to the normal operation of their equipment
and instrument
| Key specifications:CKJ-1701D8-5G High Power Mobile phone signal jamming device |
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA/GSM | 851-894/925-960 MHz | 44dbm / 25W |
| 2 | PCS./DCS | 1920-1990/1805-1880MHz | 43dbm / 20W |
| 3 | 3G | 2110-2170MHz | 43dbm / 20W |
| 4 | 4G LTE 800 | 700-803/ 758-862MHz | 43dbm / 20W |
| 5 | 4G WIMAX | 2500-2690 MHz | 43dbm / 20W |
| 6 | WIFI2.4G/4G2300 | 2400-2500/2300-2400MHz | 43dbm / 20W |
| 7 | 5G600/5G1400 | 5G617-685/ 1427-1518MHz | 43dbm / 20W |
| 8 | 5G3600 | 3400-3800MHz | 43dbm / 20W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) |
| Dimension: (length, width, height) 550*230*60mm(Not include
antenna) |
| Package Size: 650 x 440x 200mm N.W:8kg G.W:10kg(Use OMNI antennas) |
Total Power:165W Shielding Radius: (20-120) meters@-75dBm.
Still depends on the strength signal in given area. The shielding
radius of VHF/UHF signal should be lesser than cell phone signal. |
| Warranty: One year from delivery date. |
