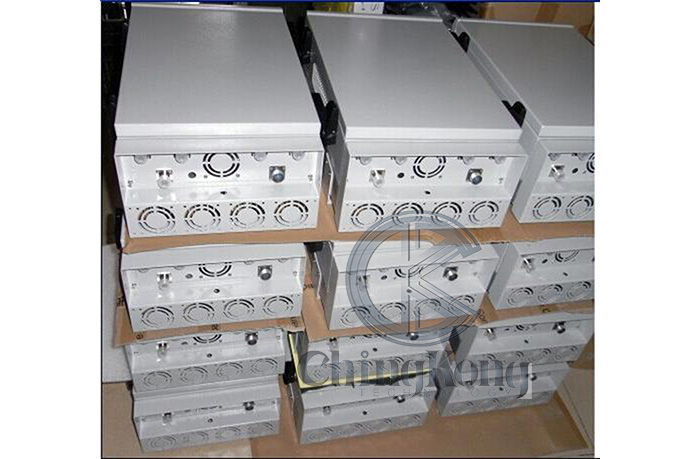

Product Information
Name: Outdoor High Power Wireless Signal Jammers for Jail project,
output power 175W Jamming up 150m
Model: CKJ-1505DW-20C
Color: Grey
Basic Specifications
Jam Signal Type:1: CKJ-1505DW-20C:Mobile phone 3G/2G GSM CDMA DCS 4GLTE Signals
Output Power:Total 175W,20-30W each band
Jam Radius:20-150 meters
Power Supply:AC110-240V to DC27V
Cooling System:High efficiency aluminum alloy radiator+ 5x cooling fans
Working Time:Not-stop Working
Product Size:520x 340 x200 mm
Product Weight: appr.25kg (for panel directional antennas)
Package Contents:Jammer Host x 1 , antenna x6, or 6x 2meter 1/2 Cable for OMNI
antennas
Product Description
High power wireless signal Jammers for Mobile Phone signals is able
to disable all mobile phone frequencies CDMA GSM, 2G, 3G, 4G Lte,
4G Low. Also is high RF power Drone Jammer model, it can defend
100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced,
standard series, inspire series, block remote control signal
2.4GHz, 5.8GHz, GPS L1 L2 L3 L4 L5, 433, RC 868 and 912MHz, Jamming
range 300-1000 meters
Advantage
Output power total 17 Use High gain 5-7 dbi omni or directional
antennas , shielding 20-150m,Still depends on the strength signal
in given area.
Each unit can jam up to 6 frequency bands simultaneously, each
frequency band is separate and with adjustable power from max to
off (0), LED indicator lights display power supply
100% safe VSWR over protection (isolator) for each modular
Big aluminum alloy shell and cooling fans, not-stop to work
Design for outdoor installation, Secure design to avoid sabotage
OEM Customized Service
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi
2.4G,5.8G,3.6GHz, GPSL1-L5 and more
Silkscreen OEM service can be offered.
Application
It can be applied at meeting rooms, conference rooms, museums,
galleries, theatres, concert halls, churches, temples, restaurants,
classrooms, training centers, factories, banks, trains, bus and
more Places that require silence, confidentiality and information
security
For some locations of special purpose such as hospitals, gas
stations and more, please do field test first to make sure no
interference happened to the normal operation of their equipment
and instrument
| Key specifications:CKJ-1505DW-20C |
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | 4G700 | 758-803 MHz | 43dbm /20W |
| 2 | CDMA 850 | 869-894MHz | 43dbm /20W |
| 3 | GSM900 | 925-960MHz | 44dbm /25W |
| 4 | DCS1800 | 1805-1880MHz | 43dbm /20W |
| 5 | 3G2100 | 2110-2170MHz | 44.7dbm /30W |
| 6 | 4G2300 | 2300-2400MHz | 43dbm /20W |
| 7 | 4G2500 | 2496-2690MHz | 43dbm /20W |
| 8 | 5G3500 | 3400-3600MHz | 43dbm /20W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) |
| Dimension: (width, height, length) 520x 340 x200mm |
| Package Size: 70*50*50cm N.W:22kg G.W:25kg |
Total Power:175W Shielding Radius: (20-150) meters@-75dBm.
Still depends on the strength signal in given area. The shielding
radius of VHF/UHF signal should be lesser than cell phone signal. |
| Warranty: One year from delivery date. |
OMNI FRP Antenna: Dimension: (length, width, height,): 500x 30 x
30mm N.W:0.5Kg Gains:5-10dbi VSWR>1.5 H:180º V:20 º | Panel Directional Antenna: Dimension: (length, width, height,): 21x
18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR>1.5 H:60-90º V:20-30º | Basic station Directional Antenna: Dimension: (length, width,
height,): 125x 25 x 8.5cm N.W:10Kg Gains:12-20dbi VSWR>1.5 H:60-90º V:20-30º |
|
