    Dual Band Mobile Phone Signal Repeater GSM 3G Signal Booster 20dBm For 900MHz

    Ask Lasest Price
    Brand Name : ChingKong
    Model Number : CKJ-B05-20DB
    Certification : CE
    Price : negotiate
    Payment Terms : T/T, Western Union,Money Gram
    Supply Ability : 10000 per month
    Delivery Time : 5 Working Days After Received Payment
    • Product Details
    • Company Profile

    Dual Band Mobile Phone Signal Repeater GSM 3G Signal Booster 20dBm For 900MHz

    Name: dual band GSM 3G signal booster, 20dBm for 900MHz &3G2100MHz mobile phone signal repeater
    Model: CKJ-B05-20DB
    Products introduction
    Dual-band signal booster series is an ideal solution for two wireless system in small/medium businesses and home users looking to enhance indoor 2G&3G wireless connectivity. It is connected via coaxial cable to two-band donor antenna and service antenna, two-band donor antenna is placed outside the building where it has easy access to BTS signal, and the service antenna is placed in the building where it can extend radio coverage to the blind area.

    Features:
    1. Cost effective solution for weak signal zones, reduce drop/off calls.
    2. Compact size, low power consumption, easy installation, great cover.
    Expansion and extension of the signal of base station. Optimization of the quality of the signal and source
    3. Cover about 500~1500m² without block or obstruct.
    4. High linear design, ALC function design, low interference to BTS.
    5. Support any cellular devices (voice & data & video)
    6. Wide band signal booster, or customize selective band booster.
    7. Support system CDMA800, GSM, DCS, PCS, WCDMA, etc.

    Standard package:
    1) AC90-264V, DC 5V/3A power supply adapter 1PCS
    2) AC power cord (EU/US/UK/SA/China standard, etc.) 1PCS
    3) Installation kit 1PCS
    4) User manual 1PCS

    Recommended accessories:
    1) Donor antenna: Log periodic antenna (9dBi,806-960/1710-2700MHz)
    2) Service antenna: Omni ceiling antenna (3dBi,806-960/1710-2700MHz)
    3) 5D-FB coaxial cable with connector (Cable length optional)

    Application:
    To expand signal coverage of fill signal blind area where signal is weak or unavailable.
    Indoor: Hotels, home, basements, shopping malls, offices, parking lots, shop.

    Frequency RangeUplinkDownlink
    GSM900 +WCDMA890- 915/1920 - 1980MHz935 - 960/2110 - 2170MHz
    CDMA800 +3G 1700824 - 849/1710 - 1755MHz869 - 894/2110 - 2155MHz
    Max. Gain60dB65dB
    Max. Output Power15dBm20dBm
    Band widthWide Band
    Automatic Gain Control>20dB
    Ripple in-band≤ 8dB
    Return loss≤ -10dB
    Noise Figure≤ 6dB
    Spurious Emission
    &Intermodulation
    9KHz~1GHz≤ -36dBm
    1~12.75GHz≤ -30dBm
    WCDMASpurious Emission MaskMeet 3GPP TS 25.143 ( V 6.2.0 )
    Modulation Accuracy≤ 12.5%
    Peak Code Domain Error≤ -35dB@Spreading Factor 256
    Time Delay≤ 1.5 μs
    Frequency stability≤ 0.01ppm
    MTBF> 50000 hours
    Power SupplyAC100-240V,DC5V/5A
    Power LEDPower indicator
    LEDHighGreen. Standard
    LowGreen. Not well.
    Mechanical Specification
    RF ConnectorN-Female
    Impedance50 ohm
    Humidity< 90%
    Operating Temperature-10°C~55°C
    Environment ConditionsIP40
    Size210mm×180mm×55mm
    Weight< 2.5Kg

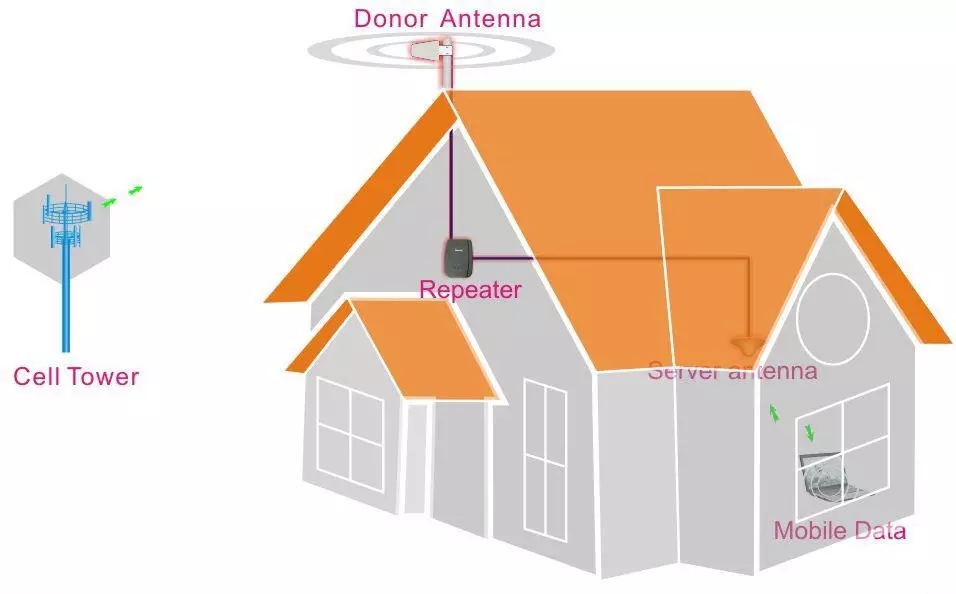

    Application Diagram
